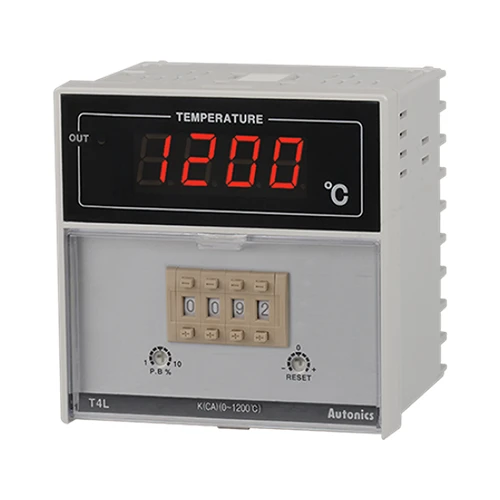

T4L-B4RJ4C-N
Temp Control, 1/4 DIN, On/Off-Proportional, Relay Output, J Thermocouple, 399 C, 110 - 220 VAC 50/60 Hz, New Type
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Display method | 4-digit 7-segment LED |
|---|---|
| Control method | ON/OFF control, P control |
| Input specification | Thermocouple: J(IC) |
| Sampling cycle | 100ms |
| Setting range | 0 to 400℃ |
| Control output | Relay(250VAC~ 5A) |
| Power supply | 100-240VAC~ 50/60Hz |
| Display accuracy_Thermocouple | •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit |
| Hysteresis(adjustable sensitivity) | F.S. 0.2 to 3% variable |
| Proportional band | F.S. 1 to 10% variable |
| Proportional cycle | 20 sec |
| RESET range | F.S. -3 to 3% variable |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 310g(approx. 222g) |
