AUTONICS

    Out Of Stock

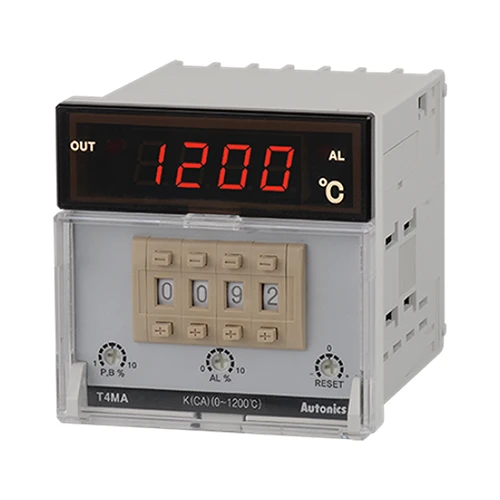

    T4MA-B4RK4C-N

    Temp Control, W72xH72mm, On/Off-Prop, SSR Out


    $205.15 $170.96 / each
    1
    T4MA-B4RK4C-N
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Display method4-digit 7-segment LED
    Control methodON/OFF control, P control
    Input specificationThermocouple: K(CA)
    Sampling cycle100ms
    Setting range0 to 400℃
    Control outputRelay(250VAC~ 5A)
    Alarm/Sub/Dual outputAlarm output
    Power supply100-240VAC~ 50/60Hz
    Display accuracy_Thermocouple•At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit
    •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
    Hysteresis(adjustable sensitivity)F.S. 0.2 to 3% variable
    Proportional bandF.S. 1 to 10% variable
    Proportional cycle20 sec
    RESET rangeF.S. -3 to 3% variable
    Environment_Ambient temperature-10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    WeightApprox. 246g(approx. 180g)
