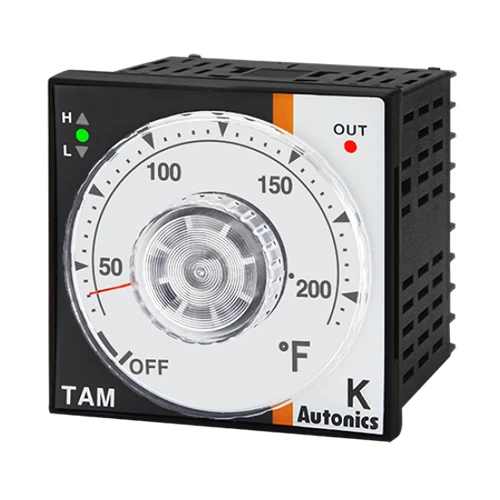

TAM-B4SK1F
Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, K Thermocouple, 32 to 212 F, 100-240 VAC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Size | DIN W72×H72mm |
|---|---|
| Display method | Non-display |
| Control method | ON/OFF control PID control |
| Input specification | Thermocouple: K(CA) |
| Temperature unit | ℉ |
| Setting range | 32~212 |
| Sampling cycle | 100ms |
| Control output | SSR drive(12VDC  ) [ON/OFF] |
| Power supply | 100-240VAC~ 50/60Hz |
| Setting type | Dial setting |
| Setting accuracy | F.S. ±2%(room temperature 23℃±5℃) |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark:  , dielectric strength between the measuring input part and the power part: 2kV) |
| Weight | Approx. 171g(approx. 109g) |
The exact weight of the cargo you've scheduled will be measured at the QUANTUM office. We will send you an email with a payment link if the weight difference is larger than the shipment amount. The payment link email will include the new weight and the difference amount that must be paid. If you have any queries concerning this procedure, please contact our customer support team at +1-905-625-3500.
