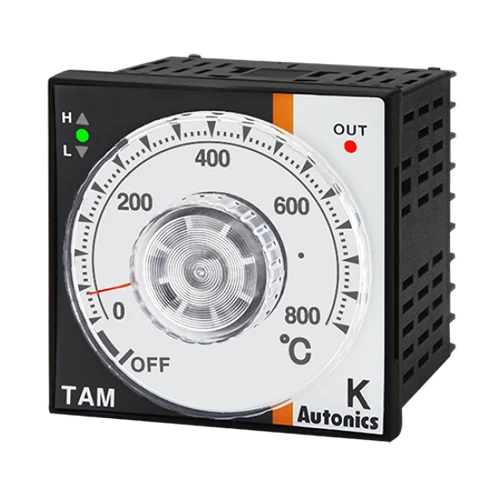

TAM-B4SK8C
Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, K Thermocouple, 800 C, 100-240 VAC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Size | DIN W72×H72mm |
|---|---|
| Display method | Non-display |
| Control method | ON/OFF control PID control |
| Input specification | Thermocouple: K(CA) |
| Temperature unit | ℃ |
| Setting range | 0~800 |
| Sampling cycle | 100ms |
| Control output | SSR drive(12VDC  ) [ON/OFF] |
| Power supply | 100-240VAC~ 50/60Hz |
| Setting type | Dial setting |
| Setting accuracy | F.S. ±2%(room temperature 23℃±5℃) |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark:  , dielectric strength between the measuring input part and the power part: 2kV) |
| Weight | Approx. 171g(approx. 109g) |
