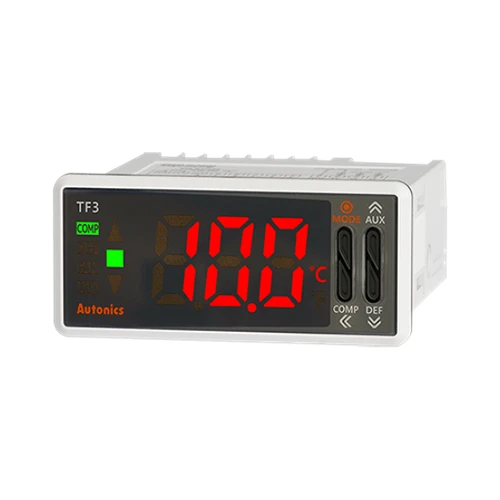

TF31-31A
Temp Control, W77 x H35mm, 3 digit display,1CH input(NTC or RTD)[Inlet Temperature + Digital Input(DI)] Compressor + Defrost + Auxiliary(Alarm/Evaporator-Fan)output, Compressor 5A 1a Contact,24VAC 50/60Hz, 12-24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Display method | 7-segment LED |
|---|---|
| Control method | ON/OFF control |
| Number of input channels | 1CH [temperature+digital input(DI)] |
| Input specification | Thermistor(NTC):5kΩ, 10kΩ RTD: DPt100Ω |
| Sampling cycle | 500ms |
| Load capacity_Compressor | 250VAC~ 5A 1a |
| Load capacity_Defrost | 250VAC~ 10A 1a |
| Load capacity_Auxiliary | 250VAC~ 5A 1a |
| Option function | No option |
| Power supply | 24VAC~ 50/60Hz, 12-24VDC  |
| Protection structure | IP65(front panel) |
| Display accuracy | At room temp.(23℃±5℃): ±1℃±1 digit Out of room temp. range: ±2℃±1 digit |
| Hysteresis(adjustable sensitivity) | 0.5 to 5.0℃, 2 to 10℉ variable |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Accessories | Bracket: 2, NTC sensor(5kΩ): 1 |
| Weight | Approx. 207g(approx. 105g) |
