    TL50HGYRQ

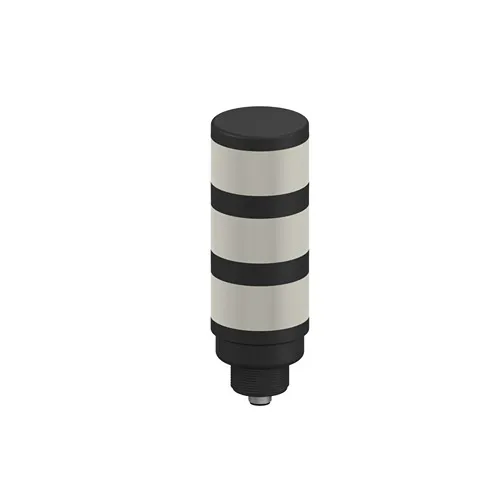

    High Intensity Tower Light: 3-Color Indicator; Voltage: 18-30 V Dc Or 24 V Ac; Environmental Rating: Ip67; Input: Bimodal; Colors: Green Yellow Red; 4-Pin M12 Integral Qd;

    INDICATOR

    ||

    BANNER-ENGINEERING

    5.00 10

    10 Review(s)
    $220.75 $183.96 / each
    1
    TL50HGYRQ
    BANNER-ENGINEERING
    FACTORY SEALED
    TL50HGYRQ.pdf

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.

    Power
    DC or AC
    IP Rating
    IP67
    Display
    No
    NEMA / UL Type Rating
    NEMA and UL 13
    Housing Style
    Base Mount - Tower
    Primary Housing Material
    ABS
    Indication
    Yes
    Mounting Thread
    M30 x 1.5
    Color Input Control
    Individual (One wire/color, same number of colors as input wires)
    Number of Colors
    3
    Product Size (mm)
    50
    Color Technology
    Standard LED
    Number of Tower Light Segments
    3
    Color Option 1
    Green
    Animation Option 1
    Solid On
    Connection
    Integral QD
    Quick Disconnect Type
    M12
    Lumens Color 1
    60.0
    Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
    Color Option 2
    Yellow
    Animation Option 2
    Solid On
    Lumens Color 2
    23.0
    Color 2 - Wavelength/Color Temp/Coordinates
    590 nm
    Color Option 3
    Red
    Animation Option 3
    Solid On
    Lumens Color 3
    32.0
    Color 3 - Wavelength/Color Temp/Coordinates
    625 nm
    Max Current Color (mA)
    100
    Number of Input Pins/Conductors
    4
    Supply Voltage
    18-30 V dc/24 V ac
    Input Type
    Bimodal (PNP/NPN)
    Max Input Response Time (ms)
    10
    Physical Dimensions (LxWxH or DxH mm)
    50.0 x 169.9
    Environmental Rating
    IP67
    Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
    High Temperature (up to 100° C)
    50
    Min Op. Temperature (°C)
    -40
    Storage Temp (°C)
    -40 to 70
    Primary Housing Color
    Black
    Primary Window Material
    Polycarbonate Diffused
    Feature: Audible
    No
    Indication Intensity
    High Brightness
    Multi-Color Device
    Simultaneous Colors On
    Feature: Quick Disconnect
    Yes
