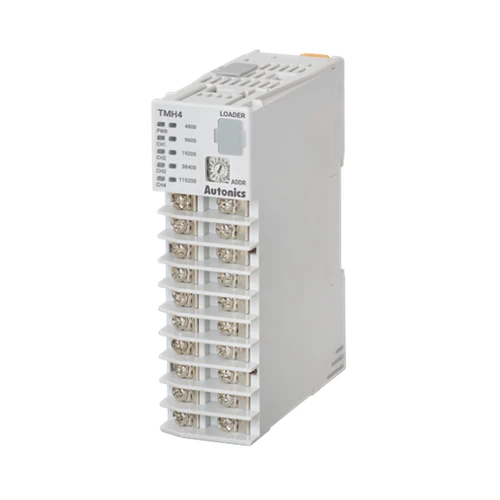

TMH4-N2RE
Advanced Multi-Channel Modular Temperature Controller, 4 channel, CT Input, RS485 Communicate Output, 24VDC, Relay Output, Expansion module
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| No. of channel | 4-channel |
|---|---|
| Sampling cycle | 50ms(2-CH or 4-CH synchronous sampling) |
| Input type_TC | K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II |
| Input type_RTD | DPt100Ω, JPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω, Nikel 120Ω 3-wire type(permissible line resistance max. 5Ω) |
| Input type_Analog | Voltage: 0-100mVDC  , 0-5VDC , 1-5VDC , 0-10VDC Current: 0-20mA, 4-20mA |
| Input type_CT | 0.0-50.0A(primary current measurement range) ※CT ratio=1/1000, Measured accuracy: ±5% F.S. ±1-digit |
| Control method | Heating, cooling, heating & cooling: ON/OFF, P, PI, PD, PID control |
| Control output_Relay | 250VAC~ 3A 1a |
| Communication | Modbus RTU |
| Proportional band | RTD/Thermocouples: 1 to 999℃/℉ (0.1 to 999.9℃/℉), analog: 0.1 to 999.9 digit |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | 0.1 to 120.0 sec |
| Manual reset | 0 to 100%( 0.0 to 100.0%) |
| Insulation type | Double insulation or reinforced insulation(mark:  , dielectric strength between the measuring input part and the power part: 1kV) |
| Unit weight (packaged weight) | ≈ 173 g (≈ 246 g) |
| Power supply | 24VDC |
| Allowable voltage range | 90 to 110% of rated voltage |
| Power consumption | Max. 5W(for max. load) |
| Display method | None-parameter setting and monitoring is available at external devices(PC, PLC, etc.) |
| Memory Protection | ≈ 10 years (non-volatile semiconductor memory type) |
| Insulation resistance | 100MΩ(at 500VDC megger) |
| Dielectric strength | Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration | 0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours |
| Noise immunity | ±0.5kV the square wave noise (pulse width: 1㎲) by the noise simulator |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP20(IEC standard) |
