TZ4H-14S

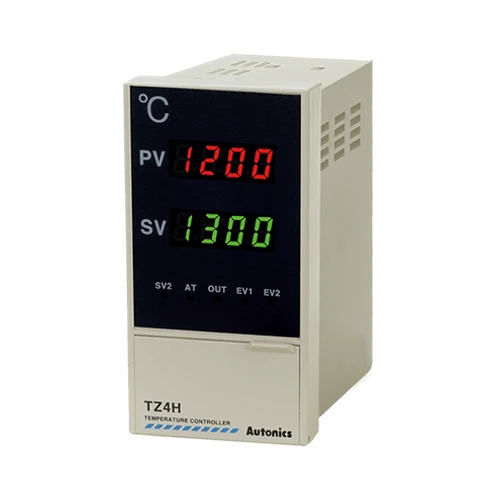

PID Temp Control, W48xH96mm, Digital, SSR Output, 1 Alarm Output, 100-240 VAC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Display method | 4-digit 7-segment LED |
|---|---|
| Control method | ON/OFF control, P, PI, PD, PIDF, PIDS control |
| Input specification | Thermocouple: K(CA), J(IC), E(CR), T(CC), R(PR), S(PR), N(NN), W(TT) RTD: DPt100Ω, JPt100Ω Analog: 1-5VDC  , 0-10VDC , DC4-20mA |
| Sampling cycle | 500ms |
| Control output | SSR drive(12VDC ) [ON/OFF] |
| Option output | Event 1 |
| Power supply | 100-240VAC~ 50/60Hz |
| Display accuracy | F.S ± 0.3% or 3℃, select the higher one |
| Alarm output hysteresis | 1 to 100℃ (0.1 to 100.0℃) variable |
| Proportional band | 0.0 to 100.0% |
| Integral time | 0 to 3,600 sec |
| Derivative time | 0 to 3,600 sec |
| Control period | 1 to 120 sec |
| LBA setting | 1 to 999 sec |
| Ramp setting | Ramp Up, Ramp Down: 1 to 99 min each |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 365g(approx. 246g) |
