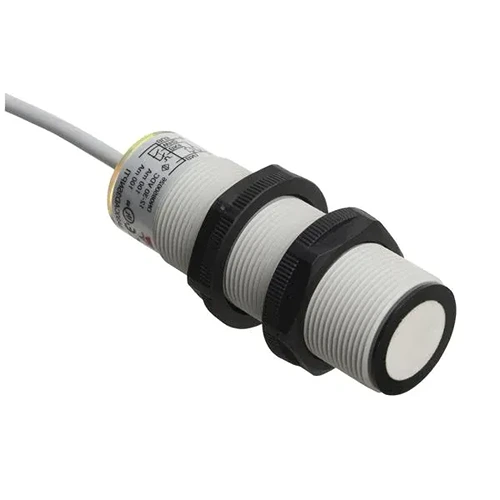

UA30CAD35PGTI
Ultrasonic diffuse, digital output and analogue, cylindrical M30 PBT housing, distance of sensing is 250-3500 mm, beam angle +-6 degree
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
- A collection of diffuse ultrasound sensors with a detection range of 3500 to 250 mm and a resolution of up to 2.0 mm
- The sensor has both a digital and an output of analogue type.
- The output is digital and is either 20 to 4 mA or 0-10V
- When combined, NPN, NO, PNP or NC make a windows detection.
- The sensor is the best option for measurement for level, measurement of diameter, measurement of distance and loop control
- The digital filtering used with microprocessor control renders the sensor resistant to the majority of electromagnetic interferences.
- Cylindrical M30 PBT housing
- Distance of sensing: 250-3500 mm
- Power supply: 12 (15) to 30 VDC
- 0-10 VDC or 4-20 mA outputs, as well as one switching output (NPN or PNP).
- Linearity error 0.5%
- Repeatability 0.2%
- Beam angle. ±6°
- Protection against short-circuits, polarity reverses, and overvoltages.
- Protection degree IP 67, Nema 4X
- 2 m cable or M12 plug
