VS25EQ

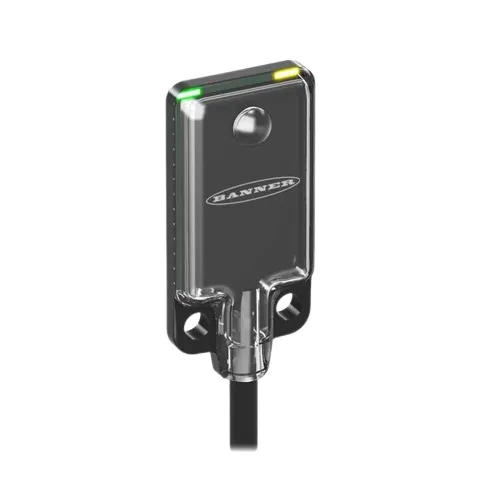

VS25EQ VS2 SERIES INFRARED EMITTER THREADED PICO PIGTAIL
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
- Body Style: Rectangular
- Connection Type:Connector
- Housing Material: Thermoplastic
- Humidity: 80 %Rh
- Indicator LEDs
- Input Output Discrete
- Lens Material MABS
- Light Source Infrared
- Maximum Operating Temperature 55degree
- Measurement Range: 3 m
- Mechanical Angle 1 On, 0.5 Off Degree(s)
- Minimum Operating Temperature -20degree
- NEMA Rating: 6
- Number of Pins: 3
- Response Time 1 ON, 0.5 OFF ms
- Sensing Mode Emitter
- Series: VS2 Series
- Supply Voltage 10-30 VDC
- Turn On Delay Time 100 ms
- Type Through Beam: Sensors
- NEMA / UL Type Rating- IP67 NEMA 4X
- Cable Length- 2m
- Sensing Beam- Infrared LED
- Power- DC
- General Sensing Mode- Opposed
- Detailed Sensing Mode- Emitter
- Primary Housing Material- Thermoplastic
- Input/Output- Discrete
- Max Sensing Distance- 3000mm
- Power Supply- (10-30V) DC
- Min Operating Temperature- -20°C
- Max Operating Temperature- 55°C
- Output response time (ms)- 1 ON/0.5 OFF
- Sensing Beam Wavelength- 940
- Delay at Power-up- 100ms
- Max Op. Relative Humidity- 80% @ 50°C
