BANNER-ENGINEERING

    Out Of Stock

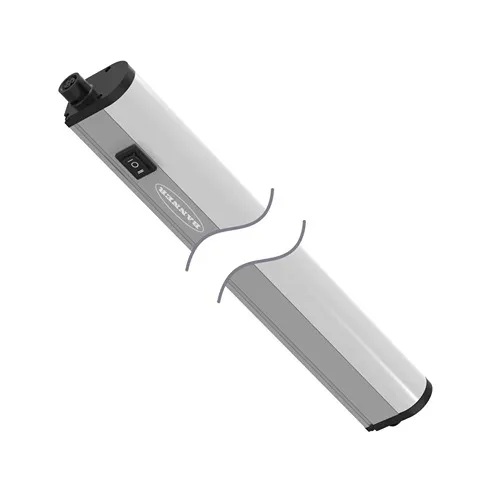

    WLB32C570PBQ

    Wlb32 Work Light Bar; Switched Hi/Low/Off; Length: 570 Mm; Voltage: 12-30 V Dc; Environmental Rating: Ip50; Color: White; Cascadable; 4-Pin M12 Integral Qd; Diffuse Window;


    $174.38 $145.32 / each
    1
    WLB32C570PBQ
    BANNER-ENGINEERING
    FACTORY SEALED
    WLB32C570PBQ.pdf

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Power
    DC
    IP Rating
    IP50
    Display
    No
    Housing Style
    Linear Strip
    Primary Housing Material
    Aluminum
    Illumination
    Yes
    Mounting Thread
    No Thread
    Color Input Control
    Individual (One wire/color, same number of colors as input wires)
    Number of Colors
    1
    Product Size (mm)
    32
    Color Technology
    Standard LED
    Color Option 1
    Daylight White
    Animation Option 1
    Solid On
    Connection
    Integral QD
    Quick Disconnect Type
    M12
    Lumens Color 1
    1500
    Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
    Dimming Option
    High-Low-Off
    Number of Input Pins/Conductors
    4
    Supply Voltage
    12-30 V dc
    Illuminated Length (LxWxH mm)
    570.0
    Physical Dimensions (LxWxH or DxH mm)
    602.0 x 31.9 x 46.0
    Environmental Rating
    IP50
    High Temperature (up to 100° C)
    70
    Min Op. Temperature (°C)
    -40
    Storage Temp (°C)
    -40 to 70
    Primary Window Material
    Polycarbonate Diffused
    Illumination Switch Function
    I=Low; O=OFF; II=High
    Feature: Audible
    No
    Feature: Cascade
    Yes
    Feature: Quick Disconnect
    Yes
